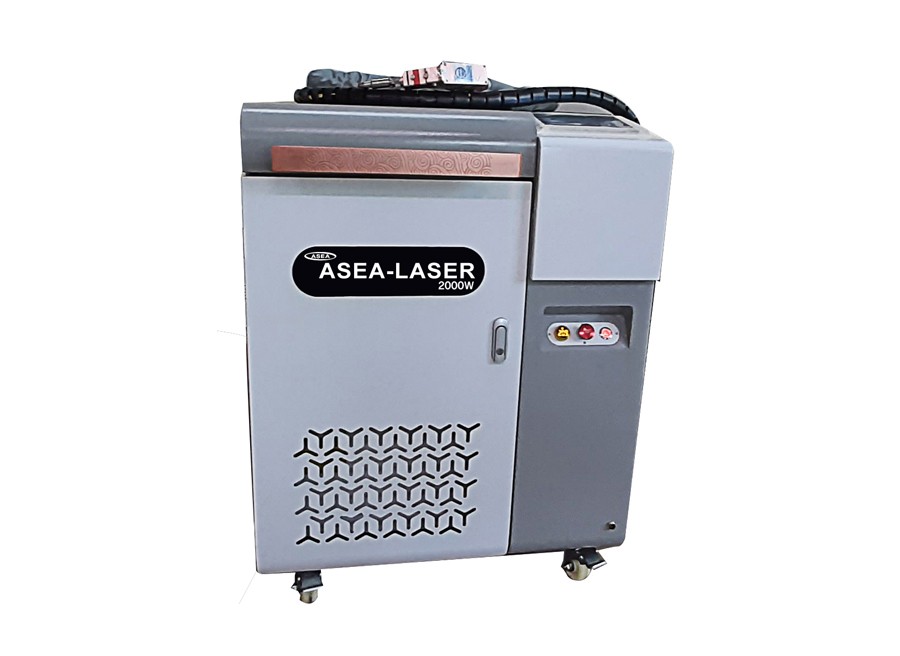

Laser Welding Machine 2000W
| Features | Water-cooled, multi-laser function (welding, rusting, cutting) |
|---|
첨부파일
관련링크
List
본문
Serial No Project Parameter
---------------------------------------------------------------------------------------------
1 Machine type HLW15 HLW20
2. Laser power 1500W 2000W
3. Max.Electricity 8500W 10200W
4. Optical Molecular
Amplifier Wavelength 1080+/- 5nm
5. Fiber Optic Length Standard 10m (Max 15m)
6. Working mode Continuous /modulated
7. Odcillator width (Laser swing) 0~5mm
8. Vibrator speed (Swing frequency) 0~300Hz
9. Welding speed 0~125mm/s
10. Cooling type Water cooled
11. Work place temp. 10~40
12. Work place humidity < 70%
13. Storage temp. -10~60
14. Workpiece Thickness 0.4~3mm (depend on model)
15. Welding gap 0.5 ( Dpend on model)
16. Power supply AC380V / 50Hz 3Ph.wire conncet
17. Exterior dimension 665 x 1105 x 1330mm (W D H )
18. G.Weight 350Kg
---------------------------------------------------------------------------------------------
